DuckStation Best Renderer: The Only Answer You Need (2026)
This post may contain affiliate links. If you purchase through them I may earn a small commission at no extra cost to you.
The best renderer for DuckStation is Vulkan. If your PC was made after 2013, set it to Vulkan and never touch it again, it's literally as simple as that!
But if you want to know why, or your game is broken, or you're on a Mac then keep on reading. It's actually really simple once someone explains it without the tech garbage and a bunch of mumbo jumbo. If you haven't set up your controller yet either, check out the DuckStation controller setup guide first.
Jump To

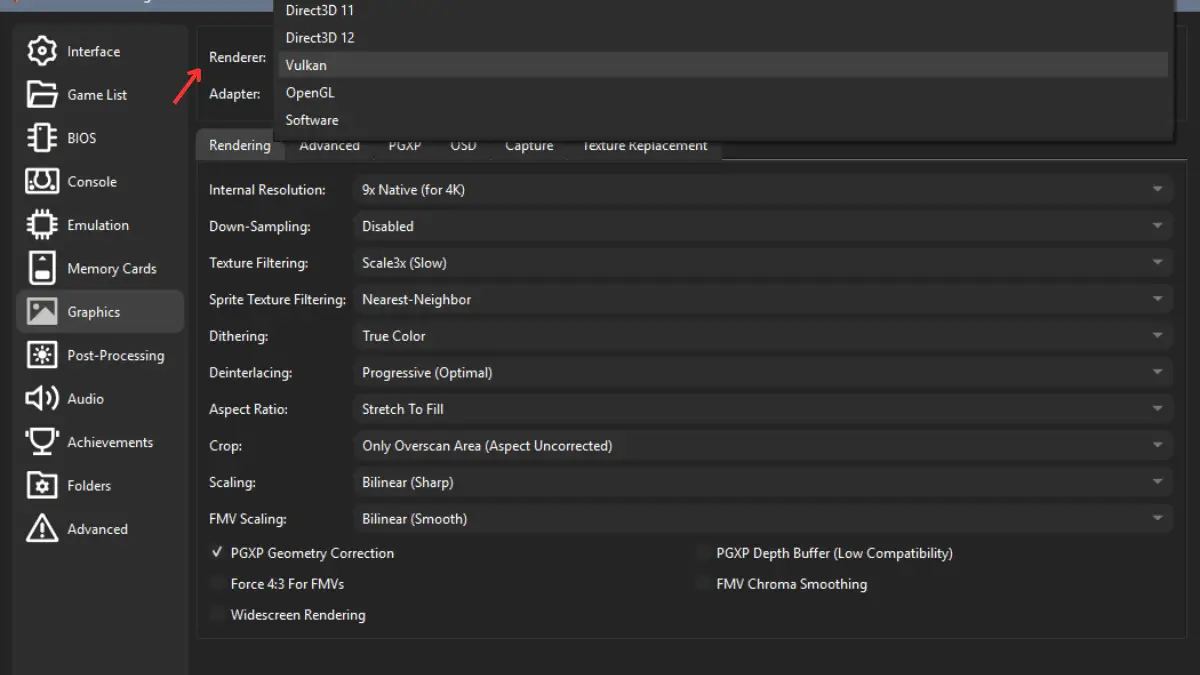

Which Renderer Should I Use?
Here's the full answer in one table. Find your situation and you're done.
| Your Situation | Use This |
|---|---|
| Normal PC (made after 2013) | Vulkan |
| Older PC (pre-2013) | Direct3D 11 |
| Mac | Metal |
| Linux | Vulkan |
| Game looks glitchy or broken | Software (to test) |
| Not sure / just want it to work | Automatic |
If you landed here just wanting the quick answer, that's it. You're done, go and enjoy your PS1 classics!
What Each Renderer Actually Is
Here's the thing nobody tells you: Vulkan, OpenGL, Direct3D 11, Direct3D 12, and Metal all look completely identical. Same picture, the same quality. There is no "better looking" renderer in that list.
The only difference is how fast they talk to your graphics card. Think of them like different roads to the same destination and Vulkan is just usually the fastest road on a modern PC.
The fastest option on modern hardware. DuckStation's developer calls it "more efficient, future-proof, and faster" than the others. Automatic mode picks this for you and that's for a good reason.
Works on any Windows PC made since 2007. If Vulkan crashes or gives you a black screen, switch here. Rock solid drivers, tested for decades, it's very reliable.
Works on the most hardware of any option. Slower than Vulkan and driver quality varies wildly especially on Intel integrated GPUs. Use it only if nothing else works.
Apple's native graphics API. If you're on any Mac: M1 through M4, or Intel Mac then use this. Requires macOS 13.3 or later.
Runs on your CPU instead of your GPU. Perfectly accurate but locked to original PS1 resolution with no upscaling and no enhancements. Use it when a game is broken and nothing else fixes it.
Mainly exists for Xbox builds of DuckStation. On a regular Windows PC it offers nothing over Vulkan. You can ignore this one entirely.
All hardware renderers produce identical picture quality, same upscaling, filters, and PGXP settings. The only difference is performance and compatibility.
When To Use Software Renderer
The Software renderer is completely different from the others. Instead of using your graphics card, it draws everything on your CPU. The result is a perfectly accurate picture, but locked to the original PS1 resolution with no upscaling, no texture smoothing, none of it. (which won't matter if you're a purist)
Think of it this way: hardware renderers make the game look better than it did on PS1. Software renderer makes it look exactly like a PS1.
Use software renderer if:
- A game has major graphical glitches you can't fix any other way
- You want to test whether a bug is a DuckStation issue or a settings issue
- You're playing one of the known problem games listed below
Don't use it as your default. You lose all enhancements and it runs slower on weak hardware. For 99% of games, Vulkan is better in every way.
My Game Looks Broken — What Do I Do?
A few games are known to have issues with hardware renderers. Most of the time DuckStation fixes these automatically in the background, but here's what to know just in case.
Games that sometimes need Software renderer
- Chrono Trigger — can have graphical errors with hardware rendering
- Final Fantasy IX — broken animations or crashes without software readbacks
- Silent Hill — mask bit accuracy issues on some hardware renderers
For these, try switching to Software renderer first. If that fixes it, you found your culprit.
Games that need specific PGXP settings (not the renderer)
- Spyro 1, 2, 3 — turn off PGXP Texture Correction
- Metal Gear Solid — enable PGXP CPU Mode
- Final Fantasy VII — turn on PGXP Geometry Correction to fix green edge lines
- Mega Man 8 — disable True Color Rendering
These aren't renderer problems at all, they're PGXP settings. Switching renderers won't help here at all really.
In most cases, DuckStation's game database handles these fixes automatically when you load the game. You won't even see it happen, but if something looks off, now you know where to look.
The Short Version
Use Vulkan. It's the fastest, it's what DuckStation defaults to, and it looks the same as every other hardware renderer anyway. If something breaks, try Direct3D 11. If a specific game looks wrong, check your PGXP settings before blaming the renderer. And if all else fails, Software renderer is there as the nuclear option.
That's everything you actually need to know. Once you've picked your renderer, the next step is dialling in the rest of your settings, the best DuckStation settings guide covers everything else.
